gDBClone script Database Clone/Snapshot Management Script

gDBClone script Database Clone/Snapshot Management Script. A Simple Approach to Managing Test and Development Environments Leveraging ACFS Snapshots on your environment

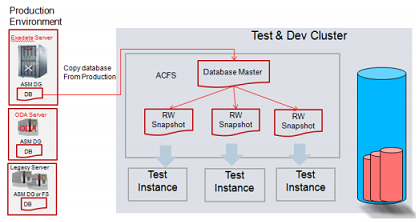

The diagram below illustrates a typical test and dev environment that can be created and managed with the gDBClone command.



Oracle link gDBClone

gDBClone Command Syntax


We have setup the following configuration
  • An Oracle database 12c server
  • Oracle standalone clusterware
  • ADVM :  acfs_asm01 on mountpoint /acfs_snap
Setup mountpoint


mkdir /acfs_snap
mount -t acfs /dev/asm/acfs_asm01-410 /acfs_snap
chown -R oracle:dba /acfs_snap/
mount | grep acfs
   /dev/asm/acfs_asm01-410 on /acfs_snap type acfs (rw)

Install the script on your system. Upload the script to your staging area. The copy the scrip to the 12c RDBM software binary. Login as root on the system set your ORACLE_HOME environment. The script gDBClone must be executed as root on the system.

cp gDBClone $ORACLE_HOME/bin/gDBClone
ls -trl $ORACLE_HOME/bin/gDBClone
    -rwxr-x--- 1 root root 77533 Jun 26 13:10 /u01/app/oracle/product/12.1.0/dbhome_1/bin/gDBClone

To successful run the gDBClone script on a standalone cluster you have to edit the script? The script works perfect on an Oracle cluster environment. The changes that have to be done are based on the srvctl commands in the script.
  1. -c SINGLE -x $host is a setting which is not present on a standalone cluster
  2. srvctl modify database -d $tdbname -j $acfs host is a setting which is not present on a standalone cluster

Things to think about when using the gDBClone script

  1. Setting of sqlnet.ora has to support hostname resolving. The script validate the listener based on the hostname provided.
  2. ADVM compatibility must be set to 12.1.0.0.
  3. Database in ARCHIVELOG mode
  4. Change the gDBClone script when it will be used on a standalone cluster.
  5. Think about selinux setting , set to disable

Create ASM Database db01

create the database on ASM and enable archivelog

dbca -silent -createDatabase -templateName General_Purpose.dbc  -gdbname db01 -sid db01 -sysPassword welcome1 -systemPassword welcome1  -emConfiguration none -storageType ASM  -asmsnmpPassword welcome1 -diskGroupName data -recoveryGroupName data -totalMemory 1024

Create Clone from ASM to ACFS with gDBClone

login as root on the target database server en set ORACLE_HOME. In my environment the source and target database server are the same. I will create a MASTER clone "CLONE01" from the ASM database DB01.

gDBClone clone -sdbname db01 -sdbhost em12c -sdbport 1521 -tdbname clone01 -tdbport 1521 -acfs /acfs_snap -racmod 0 -debug
2015-06-26 12:20:03: I Checking source host em12c...
2015-06-26 12:20:03: D Executing: ping -q -c 1 em12c > /dev/null 2>&1
2015-06-26 12:20:03: D Exit code: 0

2015-06-26 12:20:03: I Getting host info...
2015-06-26 12:20:03: D Executing: hostname -f
2015-06-26 12:20:03: D Exit code: 0
2015-06-26 12:20:03: D Output of last command execution:

2015-06-26 12:20:03: I Starting.....
2015-06-26 12:20:03: I Validating environment.....
2015-06-26 12:20:03: D Executing: /u03/app/grid/product/12.1.0/grid/bin/olsnodes
2015-06-26 12:20:03: D Exit code: 0
2015-06-26 12:20:03: D Output of last command execution:

Enter the source db01 SYSDBA password:
2015-06-26 12:20:06: I Checking SCAN listener em12c:1521...
2015-06-26 12:20:06: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/tnsping em12c:1521 >/dev/null'
2015-06-26 12:20:06: D Exit code: 0

2015-06-26 12:20:07: I Getting OH version...
2015-06-26 12:20:07: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/OPatch/opatch lsinventory | grep "Database 11g"'
2015-06-26 12:20:10: D Exit code: 1
2015-06-26 12:20:10: D Output of last command execution:
2015-06-26 12:20:10: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/OPatch/opatch lsinventory | grep "Database 12c"'
2015-06-26 12:20:14: D Exit code: 0
2015-06-26 12:20:14: D Output of last command execution:

2015-06-26 12:20:14: I Checking SCAN listener em12c.sainath.com:1521...
2015-06-26 12:20:14: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/tnsping em12c.sainath.com:1521 >/dev/null'
2015-06-26 12:20:14: D Exit code: 0

2015-06-26 12:20:14: I Checking database CLONE01 existence...
2015-06-26 12:20:14: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/srvctl config database -d CLONE01 >/dev/null'
2015-06-26 12:20:15: D Exit code: 1

2015-06-26 12:20:15: I Checking registered instance CLONE01 ...
2015-06-26 12:20:16: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/srvctl config database -d db01 |grep instances'
2015-06-26 12:20:17: D Exit code: 1
2015-06-26 12:20:17: D Output of last command execution:

2015-06-26 12:20:17: I Checking if the /acfs_snap is an ACFS file system
2015-06-26 12:20:17: D Executing: acfsutil info fs /acfs_snap > /dev/null 2>&1
2015-06-26 12:20:17: D Exit code: 0
2015-06-26 12:20:17: D Output of last command execution:

2015-06-26 12:20:17: I Checking if the Source Database db01 it's on ASM
2015-06-26 12:20:18: I Source Database db01 it's on ASM
2015-06-26 12:20:18: I Setting up clone environment....
2015-06-26 12:20:18: D Executing: su oracle -c 'touch /u01/app/oracle/product/12.1.0/dbhome_1/dbs/initCLONE01.ora'
2015-06-26 12:20:18: D Exit code: 0

2015-06-26 12:20:18: D Output of last command execution:
2015-06-26 12:20:18: D Executing: su oracle -c 'mkdir -p /u01/app/oracle/admin/CLONE01/adump'
2015-06-26 12:20:18: D Exit code: 0
2015-06-26 12:20:18: D Output of last command execution:

2015-06-26 12:20:18: I Starting auxiliary listener....
2015-06-26 12:20:18: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/lsnrctl start listener_clone'
2015-06-26 12:20:18: D Exit code: 0
2015-06-26 12:20:18: D Output of last command execution:
2015-06-26 12:20:18: D

2015-06-26 12:21:18: I Creating base ACFS snapshot.....
2015-06-26 12:21:18: D Executing: acfsutil snap create -w CLONE01 /acfs_snap
2015-06-26 12:21:18: D Exit code: 0
2015-06-26 12:21:18: D Output of last command execution:

2015-06-26 12:21:18: I Creating dynamic scripts.....
2015-06-26 12:21:18: I Cloning to target ACFS from host em12c
2015-06-26 12:21:18: I Spfile to target ACFS
2015-06-26 12:21:18: D Executing: su oracle -c 'mkdir -p /acfs_snap/.ACFS/snaps/CLONE01'
2015-06-26 12:21:18: D Exit code: 0
2015-06-26 12:21:18: D Output of last command execution:

2015-06-26 12:21:18: I Instantiating clone database.....
2015-06-26 12:21:18: I please wait (this can take a while depending on database size and/or network speed)
2015-06-26 12:21:18: D Executing: su oracle -c 'mkdir -p /acfs_snap/.ACFS/snaps/CLONE01'
2015-06-26 12:21:18: D Exit code: 0
2015-06-26 12:21:18: D Output of last command execution:
2015-06-26 12:21:18: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/rman target sys/welcome1@//em12c:1521/db01 auxiliary sys/welcome1@//em12c.sainath.com:35007/CLONE01 cmdfile /var/log/gDBClone/dup.scr'
Recovery Manager: Release 12.1.0.2.0 - Production on Fri Jun 26 12:21:18 2015
Copyright (c) 1982, 2014, Oracle and/or its affiliates.  All rights reserved.
connected to target database: DB01 (DBID=1514591559)
connected to auxiliary database (not started)

RMAN> sql 'alter system archive log current';
2> startup clone nomount;
3> run {
4> allocate channel tgt1 device type disk;
5> allocate channel tgt2 device type disk;
6> allocate channel tgt3 device type disk;
7> allocate auxiliary channel aux1 device type disk;
8> allocate auxiliary channel aux2 device type disk;
9> allocate auxiliary channel aux3 device type disk;
10> DUPLICATE TARGET DATABASE
11> TO 'CLONE01'
12>   FROM ACTIVE DATABASE
13>   SPFILE
14>     PARAMETER_VALUE_CONVERT='db01','CLONE01'
15>     SET CONTROL_FILES='/acfs_snap/.ACFS/snaps/CLONE01/control01.ctl'
16>     SET DB_UNIQUE_NAME="CLONE01"
17>     SET CLUSTER_DATABASE='false'
18>     SET DB_CREATE_FILE_DEST="/acfs_snap/.ACFS/snaps/CLONE01"
19>     SET REMOTE_LISTENER="em12c.sainath.com:1521"
20>     SET DIAGNOSTIC_DEST="/u01/app/oracle"
21>     SET AUDIT_FILE_DEST="/u01/app/oracle/admin/CLONE01/adump"
22>     SET DB_RECOVERY_FILE_DEST="/acfs_snap/.ACFS/snaps/CLONE01"
23>     SET DB_CREATE_ONLINE_LOG_DEST_1="/acfs_snap/.ACFS/snaps/CLONE01"
24>     SET DB_RECOVERY_FILE_DEST_SIZE='10G'
25>   NOFILENAMECHECK;
26> }
27>
using target database control file instead of recovery catalog
sql statement: alter system archive log current

Oracle instance started

Total System Global Area     272629760 bytes

Fixed Size                     2923336 bytes
Variable Size                213910712 bytes
Database Buffers              50331648 bytes
Redo Buffers                   5464064 bytes

allocated channel: tgt1
channel tgt1: SID=362 device type=DISK
allocated channel: tgt2
channel tgt2: SID=374 device type=DISK
allocated channel: tgt3
channel tgt3: SID=13 device type=DISK
allocated channel: aux1
channel aux1: SID=7 device type=DISK
allocated channel: aux2
channel aux2: SID=147 device type=DISK
allocated channel: aux3
channel aux3: SID=289 device type=DISK
Starting Duplicate Db at 26-JUN-15
current log archived
contents of Memory Script:
{
   restore clone from service  '//em12c:1521/db01' spfile to
 '/u01/app/oracle/product/12.1.0/dbhome_1/dbs/spfileCLONE01.ora';
   sql clone "alter system set spfile= ''/u01/app/oracle/product/12.1.0/dbhome_1/dbs/spfileCLONE01.ora''";
}
executing Memory Script

Starting restore at 26-JUN-15

channel aux1: starting datafile backup set restore
channel aux1: using network backup set from service //em12c:1521/db01
channel aux1: restoring SPFILE
output file name=/u01/app/oracle/product/12.1.0/dbhome_1/dbs/spfileCLONE01.ora
channel aux1: restore complete, elapsed time: 00:00:02
Finished restore at 26-JUN-15

sql statement: alter system set spfile= ''/u01/app/oracle/product/12.1.0/dbhome_1/dbs/spfileCLONE01.ora''

contents of Memory Script:
{
   sql clone "alter system set  db_name =
 ''CLONE01'' comment=
 ''duplicate'' scope=spfile";
   sql clone "alter system set  dispatchers =
 ''(PROTOCOL=TCP) (SERVICE=CLONE01XDB)'' comment=
 '''' scope=spfile";
   sql clone "alter system set  CONTROL_FILES =
 ''/acfs_snap/.ACFS/snaps/CLONE01/control01.ctl'' comment=
 '''' scope=spfile";
   sql clone "alter system set  db_unique_name =
 ''CLONE01'' comment=
 '''' scope=spfile";
   sql clone "alter system set  CLUSTER_DATABASE =
 false comment=
 '''' scope=spfile";
   sql clone "alter system set  DB_CREATE_FILE_DEST =
 ''/acfs_snap/.ACFS/snaps/CLONE01'' comment=
 '''' scope=spfile";
   sql clone "alter system set  REMOTE_LISTENER =
 ''em12c.sainath.com:1521'' comment=
 '''' scope=spfile";
   sql clone "alter system set  DIAGNOSTIC_DEST =
 ''/u01/app/oracle'' comment=
 '''' scope=spfile";
   sql clone "alter system set  AUDIT_FILE_DEST =
 ''/u01/app/oracle/admin/CLONE01/adump'' comment=
 '''' scope=spfile";
   sql clone "alter system set  db_recovery_file_dest =
 ''/acfs_snap/.ACFS/snaps/CLONE01'' comment=
 '''' scope=spfile";
   sql clone "alter system set  DB_CREATE_ONLINE_LOG_DEST_1 =
 ''/acfs_snap/.ACFS/snaps/CLONE01'' comment=
 '''' scope=spfile";
   sql clone "alter system set  DB_RECOVERY_FILE_DEST_SIZE =
 10G comment=
 '''' scope=spfile";
   shutdown clone immediate;
   startup clone nomount;
}
executing Memory Script

sql statement: alter system set  db_name =  ''CLONE01'' comment= ''duplicate'' scope=spfile
sql statement: alter system set  dispatchers =  ''(PROTOCOL=TCP) (SERVICE=CLONE01XDB)'' comment= '''' scope=spfile
sql statement: alter system set  CONTROL_FILES =  ''/acfs_snap/.ACFS/snaps/CLONE01/control01.ctl'' comment= '''' scope=spfile
sql statement: alter system set  db_unique_name =  ''CLONE01'' comment= '''' scope=spfile
sql statement: alter system set  CLUSTER_DATABASE =  false comment= '''' scope=spfile
sql statement: alter system set  DB_CREATE_FILE_DEST =  ''/acfs_snap/.ACFS/snaps/CLONE01'' comment= '''' scope=spfile
sql statement: alter system set  REMOTE_LISTENER =  ''em12c.sainath.com:1521'' comment= '''' scope=spfile
sql statement: alter system set  DIAGNOSTIC_DEST =  ''/u01/app/oracle'' comment= '''' scope=spfile
sql statement: alter system set  AUDIT_FILE_DEST =  ''/u01/app/oracle/admin/CLONE01/adump'' comment= '''' scope=spfile
sql statement: alter system set  db_recovery_file_dest =  ''/acfs_snap/.ACFS/snaps/CLONE01'' comment= '''' scope=spfile
sql statement: alter system set  DB_CREATE_ONLINE_LOG_DEST_1 =  ''/acfs_snap/.ACFS/snaps/CLONE01'' comment= '''' scope=spfile
sql statement: alter system set  DB_RECOVERY_FILE_DEST_SIZE =  10G comment= '''' scope=spfile
Oracle instance shut down

connected to auxiliary database (not started)
Oracle instance started

Total System Global Area     805306368 bytes

Fixed Size                     2929552 bytes
Variable Size                331353200 bytes
Database Buffers             465567744 bytes
Redo Buffers                   5455872 bytes
allocated channel: aux1
channel aux1: SID=243 device type=DISK
allocated channel: aux2
channel aux2: SID=357 device type=DISK
allocated channel: aux3
channel aux3: SID=6 device type=DISK

contents of Memory Script:
{
   sql clone "alter system set  db_name =
 ''DB01'' comment=
 ''Modified by RMAN duplicate'' scope=spfile";
   sql clone "alter system set  db_unique_name =
 ''CLONE01'' comment=
 ''Modified by RMAN duplicate'' scope=spfile";
   shutdown clone immediate;
   startup clone force nomount
   restore clone from service  '//em12c:1521/db01' primary controlfile;
   alter clone database mount;
}
executing Memory Script

sql statement: alter system set  db_name =  ''DB01'' comment= ''Modified by RMAN duplicate'' scope=spfile
sql statement: alter system set  db_unique_name =  ''CLONE01'' comment= ''Modified by RMAN duplicate'' scope=spfile

Oracle instance shut down
Oracle instance started

Total System Global Area     805306368 bytes

Fixed Size                     2929552 bytes
Variable Size                331353200 bytes
Database Buffers             465567744 bytes
Redo Buffers                   5455872 bytes
allocated channel: aux1
channel aux1: SID=243 device type=DISK
allocated channel: aux2
channel aux2: SID=357 device type=DISK
allocated channel: aux3
channel aux3: SID=6 device type=DISK

Starting restore at 26-JUN-15

channel aux1: starting datafile backup set restore
channel aux1: using network backup set from service //em12c:1521/db01
channel aux1: restoring control file
channel aux1: restore complete, elapsed time: 00:00:02
output file name=/acfs_snap/.ACFS/snaps/CLONE01/control01.ctl
Finished restore at 26-JUN-15

database mounted

contents of Memory Script:
{
   set newname for clone datafile  1 to new;
   set newname for clone datafile  3 to new;
   set newname for clone datafile  4 to new;
   set newname for clone datafile  6 to new;
   restore
   from service  '//em12c:1521/db01'   clone database
   ;
   sql 'alter system archive log current';
}
executing Memory Script

executing command: SET NEWNAME
executing command: SET NEWNAME
executing command: SET NEWNAME
executing command: SET NEWNAME

Starting restore at 26-JUN-15

channel aux1: starting datafile backup set restore
channel aux1: using network backup set from service //em12c:1521/db01
channel aux1: specifying datafile(s) to restore from backup set
channel aux1: restoring datafile 00001 to /acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_system_%u_.dbf
channel aux2: starting datafile backup set restore
channel aux2: using network backup set from service //em12c:1521/db01
channel aux2: specifying datafile(s) to restore from backup set
channel aux2: restoring datafile 00003 to /acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_sysaux_%u_.dbf
channel aux3: starting datafile backup set restore
channel aux3: using network backup set from service //em12c:1521/db01
channel aux3: specifying datafile(s) to restore from backup set
channel aux3: restoring datafile 00004 to /acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_undotbs1_%u_.dbf
channel aux3: restore complete, elapsed time: 00:00:26
channel aux3: starting datafile backup set restore
channel aux3: using network backup set from service //em12c:1521/db01
channel aux3: specifying datafile(s) to restore from backup set
channel aux3: restoring datafile 00006 to /acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_users_%u_.dbf
channel aux2: restore complete, elapsed time: 00:00:36
channel aux1: restore complete, elapsed time: 00:00:51
channel aux3: restore complete, elapsed time: 00:00:25
Finished restore at 26-JUN-15

sql statement: alter system archive log current
current log archived

contents of Memory Script:
{
   restore clone force from service  '//em12c:1521/db01'
           archivelog from scn  1954555;
   switch clone datafile all;
}
executing Memory Script

Starting restore at 26-JUN-15

channel aux1: starting archived log restore to default destination
channel aux1: using network backup set from service //em12c:1521/db01
channel aux1: restoring archived log
archived log thread=1 sequence=29
channel aux2: starting archived log restore to default destination
channel aux2: using network backup set from service //em12c:1521/db01
channel aux2: restoring archived log
archived log thread=1 sequence=30
channel aux1: restore complete, elapsed time: 00:00:00
channel aux2: restore complete, elapsed time: 00:00:01
Finished restore at 26-JUN-15

datafile 1 switched to datafile copy
input datafile copy RECID=5 STAMP=883398201 file name=/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_system_brt9z4rw_.dbf
datafile 3 switched to datafile copy
input datafile copy RECID=6 STAMP=883398201 file name=/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_sysaux_brt9z50o_.dbf
datafile 4 switched to datafile copy
input datafile copy RECID=7 STAMP=883398201 file name=/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_undotbs1_brt9z9kf_.dbf
datafile 6 switched to datafile copy
input datafile copy RECID=8 STAMP=883398201 file name=/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_users_brtb0lg1_.dbf

contents of Memory Script:
{
   set until scn  1954730;
   recover
   clone database
    delete archivelog
   ;
}
executing Memory Script

executing command: SET until clause

Starting recover at 26-JUN-15

starting media recovery

archived log for thread 1 with sequence 29 is already on disk as file /acfs_snap/.ACFS/snaps/CLONE01/CLONE01/archivelog/2015_06_26/o1_mf_1_29_brtb0rl9_.arc
archived log for thread 1 with sequence 30 is already on disk as file /acfs_snap/.ACFS/snaps/CLONE01/CLONE01/archivelog/2015_06_26/o1_mf_1_30_brtb0rvn_.arc
archived log file name=/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/archivelog/2015_06_26/o1_mf_1_29_brtb0rl9_.arc thread=1 sequence=29
archived log file name=/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/archivelog/2015_06_26/o1_mf_1_30_brtb0rvn_.arc thread=1 sequence=30
media recovery complete, elapsed time: 00:00:04
Finished recover at 26-JUN-15
Oracle instance started

Total System Global Area     805306368 bytes

Fixed Size                     2929552 bytes
Variable Size                331353200 bytes
Database Buffers             465567744 bytes
Redo Buffers                   5455872 bytes

contents of Memory Script:
{
   sql clone "alter system set  db_name =
 ''CLONE01'' comment=
 ''Reset to original value by RMAN'' scope=spfile";
   sql clone "alter system reset  db_unique_name scope=spfile";
}
executing Memory Script

sql statement: alter system set  db_name =  ''CLONE01'' comment= ''Reset to original value by RMAN'' scope=spfile
sql statement: alter system reset  db_unique_name scope=spfile
Oracle instance started

Total System Global Area     805306368 bytes

Fixed Size                     2929552 bytes
Variable Size                331353200 bytes
Database Buffers             465567744 bytes
Redo Buffers                   5455872 bytes
sql statement: CREATE CONTROLFILE REUSE SET DATABASE "CLONE01" RESETLOGS ARCHIVELOG
  MAXLOGFILES     16
  MAXLOGMEMBERS      3
  MAXDATAFILES      100
  MAXINSTANCES     8
  MAXLOGHISTORY      292
 LOGFILE
  GROUP   1  SIZE 50 M ,
  GROUP   2  SIZE 50 M ,
  GROUP   3  SIZE 50 M
 DATAFILE
  '/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_system_brt9z4rw_.dbf'
 CHARACTER SET WE8MSWIN1252

contents of Memory Script:
{
   set newname for clone tempfile  1 to new;
   switch clone tempfile all;
   catalog clone datafilecopy  "/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_sysaux_brt9z50o_.dbf",
 "/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_undotbs1_brt9z9kf_.dbf",
 "/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_users_brtb0lg1_.dbf";
   switch clone datafile all;
}
executing Memory Script

executing command: SET NEWNAME
renamed tempfile 1 to /acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_temp_%u_.tmp in control file
cataloged datafile copy
datafile copy file name=/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_sysaux_brt9z50o_.dbf RECID=1 STAMP=883398228
cataloged datafile copy
datafile copy file name=/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_undotbs1_brt9z9kf_.dbf RECID=2 STAMP=883398228
cataloged datafile copy
datafile copy file name=/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_users_brtb0lg1_.dbf RECID=3 STAMP=883398228
datafile 3 switched to datafile copy
input datafile copy RECID=1 STAMP=883398228 file name=/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_sysaux_brt9z50o_.dbf
datafile 4 switched to datafile copy
input datafile copy RECID=2 STAMP=883398228 file name=/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_undotbs1_brt9z9kf_.dbf
datafile 6 switched to datafile copy
input datafile copy RECID=3 STAMP=883398228 file name=/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/datafile/o1_mf_users_brtb0lg1_.dbf

contents of Memory Script:
{
   Alter clone database open resetlogs;
}
executing Memory Script

database opened
Finished Duplicate Db at 26-JUN-15
released channel: tgt1
released channel: tgt2
released channel: tgt3

Recovery Manager complete.
2015-06-26 12:23:54: D Exit code: 0

2015-06-26 12:23:54: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/rman target sys/welcome1@//em12c.sainath.com:35007/CLONE01 cmdfile /var/log/gDBClone/mov.scr'

Recovery Manager: Release 12.1.0.2.0 - Production on Fri Jun 26 12:23:54 2015

Copyright (c) 1982, 2014, Oracle and/or its affiliates.  All rights reserved.

connected to target database: CLONE01 (DBID=3531661844)

RMAN> backup spfile;
2> restore spfile to "/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/spfileCLONE01.ora";
3> shutdown immediate;
4>
Starting backup at 26-JUN-15
using target database control file instead of recovery catalog
allocated channel: ORA_DISK_1
channel ORA_DISK_1: SID=130 device type=DISK
channel ORA_DISK_1: starting full datafile backup set
channel ORA_DISK_1: specifying datafile(s) in backup set
including current SPFILE in backup set
channel ORA_DISK_1: starting piece 1 at 26-JUN-15
channel ORA_DISK_1: finished piece 1 at 26-JUN-15
piece handle=/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/backupset/2015_06_26/o1_mf_nnsnf_TAG20150626T122358_brtb1yds_.bkp tag=TAG20150626T122358 comment=NONE
channel ORA_DISK_1: backup set complete, elapsed time: 00:00:01
Finished backup at 26-JUN-15

Starting restore at 26-JUN-15
using channel ORA_DISK_1

channel ORA_DISK_1: starting datafile backup set restore
channel ORA_DISK_1: restoring SPFILE
output file name=/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/spfileCLONE01.ora
channel ORA_DISK_1: reading from backup piece /acfs_snap/.ACFS/snaps/CLONE01/CLONE01/backupset/2015_06_26/o1_mf_nnsnf_TAG20150626T122358_brtb1yds_.bkp
channel ORA_DISK_1: piece handle=/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/backupset/2015_06_26/o1_mf_nnsnf_TAG20150626T122358_brtb1yds_.bkp tag=TAG20150626T122358
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
Finished restore at 26-JUN-15

database closed
database dismounted
Oracle instance shut down

Recovery Manager complete.
2015-06-26 12:24:17: D Exit code: 0
2015-06-26 12:24:17: D Executing: su oracle -c 'touch /u01/app/oracle/product/12.1.0/dbhome_1/dbs/initCLONE01.ora'
2015-06-26 12:24:17: D Exit code: 0
2015-06-26 12:24:17: D Output of last command execution:
2015-06-26 12:24:17: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/srvctl add database -d CLONE01 -o /u01/app/oracle/product/12.1.0/dbhome_1 -p "/acfs_snap/.ACFS/snaps/CLONE01/CLONE01/spfileCLONE01.ora" -s open'
2015-06-26 12:24:19: D Exit code: 0
2015-06-26 12:24:19: D Output of last command execution:

System altered.

2015-06-26 12:24:19: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/srvctl modify database -d CLONE01 -i CLONE01'
2015-06-26 12:24:20: D Exit code: 0
2015-06-26 12:24:20: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/srvctl modify database -d CLONE01 -z'
2015-06-26 12:24:21: D Exit code: 0

2015-06-26 12:24:21: I Successfully created clone "CLONE01" database
2015-06-26 12:24:21: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/lsnrctl stop listener_clone >/dev/null'
2015-06-26 12:24:21: D Exit code:

Validation of the created CLONE


gDBClone listdb
Database Name    Database Type   Database Role      Location/Parent
-------------    -------------   ----------------   ----------------
CLONE01          SINGLE          Master             /acfs_snap/.ACFS/snaps/

Validation of the CRS information for the new database


/u03/app/grid/product/12.1.0/grid/bin/crsctl status resource -w "TYPE = ora.database.type" -t
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.clone01.db
      1        OFFLINE OFFLINE                               STABLE
ora.db01.db
      1        ONLINE  ONLINE       em12c                    Open,STABLE
--------------------------------------------------------------------------------
srvctl start database -d clone01
/u03/app/grid/product/12.1.0/grid/bin/crsctl status resource -w "TYPE = ora.database.type" -t
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.clone01.db
      1        ONLINE  ONLINE       em12c                    Open,STABLE
ora.db01.db
      1        ONLINE  ONLINE       em12c                    Open,STABLE
--------------------------------------------------------------------------------
ps -ef|grep smon
oracle    2379     1  0 10:33 ?        00:00:00 asm_smon_+ASM
oracle    2604     1  0 10:33 ?        00:00:00 ora_smon_db01
oracle   13469     1  0 12:54 ?        00:00:00 ora_smon_CLONE01
root     13882  2635  0 12:54 pts/0    00:00:00 grep smon

Create SNAP from MASTER clone with gDBClone

 gDBClone snap -sdbname clone01 -tdbname clone02 -debug
2015-06-26 13:12:54: I Getting host info...
2015-06-26 13:12:54: D Executing: hostname -f
2015-06-26 13:12:54: D Exit code: 0
2015-06-26 13:12:54: D Output of last command execution:

2015-06-26 13:12:54: I Starting.....
2015-06-26 13:12:54: I Validating environment.....
2015-06-26 13:12:54: D Executing: /u03/app/grid/product/12.1.0/grid/bin/olsnodes
2015-06-26 13:12:54: D Exit code: 0
2015-06-26 13:12:54: D Output of last command execution:

Enter the source CLONE01 SYSDBA password:
2015-06-26 13:13:01: I Getting OH version...
2015-06-26 13:13:01: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/OPatch/opatch lsinventory | grep "Database 11g"'
2015-06-26 13:13:06: D Exit code: 1

2015-06-26 13:13:06: D Output of last command execution:
2015-06-26 13:13:06: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/OPatch/opatch lsinventory | grep "Database 12c"'
2015-06-26 13:13:10: D Exit code: 0
2015-06-26 13:13:10: D Output of last command execution:

2015-06-26 13:13:10: I Checking SCAN listener em12c.sainath.com:1521...
2015-06-26 13:13:10: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/tnsping em12c.sainath.com:1521 >/dev/null'
2015-06-26 13:13:10: D Exit code: 0

2015-06-26 13:13:10: I Checking database CLONE02 existence...
2015-06-26 13:13:10: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/srvctl config database -d CLONE02 >/dev/null'
2015-06-26 13:13:11: D Exit code: 1

2015-06-26 13:13:11: I Checking registered instance CLONE02 ...
2015-06-26 13:13:11: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/srvctl config database -d CLONE01 |grep instances'
2015-06-26 13:13:13: D Exit code: 1
2015-06-26 13:13:13: D Output of last command execution:
2015-06-26 13:13:13: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/srvctl config database -d db01 |grep instances'
2015-06-26 13:13:14: D Exit code: 1
2015-06-26 13:13:14: D Output of last command execution:

2015-06-26 13:13:14: I Checking if the Source Database CLONE01 it's on ASM
2015-06-26 13:13:15: I Source Database CLONE01 it's on ACFS
2015-06-26 13:13:15: I Checking snapshot CLONE02 existence
2015-06-26 13:13:15: D Executing: acfsutil snap info CLONE02 /acfs_snap > /dev/null 2>&1
2015-06-26 13:13:15: D Exit code: 1
2015-06-26 13:13:15: D Output of last command execution:

2015-06-26 13:13:15: I Setting up clone environment....
2015-06-26 13:13:15: D Executing: su oracle -c 'touch /u01/app/oracle/product/12.1.0/dbhome_1/dbs/initCLONE02.ora'
2015-06-26 13:13:15: D Exit code: 0
2015-06-26 13:13:15: D Output of last command execution:
2015-06-26 13:13:15: D Executing: su oracle -c 'mkdir -p /u01/app/oracle/admin/CLONE02/adump'
2015-06-26 13:13:15: D Exit code: 0
2015-06-26 13:13:15: D Output of last command execution:

2015-06-26 13:13:15: I Starting auxiliary listener....
2015-06-26 13:13:15: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/lsnrctl start listener_clone'
2015-06-26 13:13:15: D Exit code: 0
2015-06-26 13:13:15: D Output of last command execution:
2015-06-26 13:13:15: D

2015-06-26 13:14:15: I Creating ACFS snapshot.....
2015-06-26 13:14:15: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/srvctl stop database -d CLONE01'
2015-06-26 13:14:31: D Exit code: 0
2015-06-26 13:14:31: D Output of last command execution:

2015-06-26 13:14:31: I Checking if the source database CLONE01 is stored on an ACFS snapshot
2015-06-26 13:14:31: I The source database CLONE01 is running on an ACFS snapshot
2015-06-26 13:14:31: D Executing: acfsutil snap create -w -p CLONE01 CLONE02 /acfs_snap

2015-06-26 13:14:31: D Exit code: 0
2015-06-26 13:14:31: D Output of last command execution:
2015-06-26 13:14:31: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/srvctl start database -d CLONE01'
2015-06-26 13:14:42: D Exit code: 0

2015-06-26 13:14:42: I Setting up snapshot database.....
2015-06-26 13:14:42: I Creating Clone parameter files
2015-06-26 13:14:42: D Executing: export ORACLE_SID=CLONE02; echo exit | /u01/app/oracle/product/12.1.0/dbhome_1/bin/sqlplus sys/welcome1 as sysdba @/var/log/gDBClone/pfile.sql
2015-06-26 13:14:44: D Exit code: 0
2015-06-26 13:14:44: D Output of last command execution:
2015-06-26 13:14:44: D
2015-06-26 13:14:44: D Executing: export ORACLE_SID=CLONE02; echo exit | /u01/app/oracle/product/12.1.0/dbhome_1/bin/sqlplus sys/welcome1 as sysdba @/var/log/gDBClone/spfile.sql
2015-06-26 13:14:45: D Exit code: 0
2015-06-26 13:14:45: D Output of last command execution:
2015-06-26 13:14:45: D
2015-06-26 13:14:45: D Executing: su oracle -c 'touch /u01/app/oracle/product/12.1.0/dbhome_1/dbs/initCLONE02.ora'
2015-06-26 13:14:45: D Exit code: 0
2015-06-26 13:14:45: D Output of last command execution:

2015-06-26 13:14:45: I Activating clone database.....
2015-06-26 13:14:45: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/srvctl add database -d CLONE02 -o /u01/app/oracle/product/12.1.0/dbhome_1 -p "/acfs_snap/.ACFS/snaps/CLONE02/CLONE01/spfileCLONE02.ora" -s open'
2015-06-26 13:14:47: D Exit code: 0
2015-06-26 13:14:47: D Output of last command execution:
2015-06-26 13:14:47: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/srvctl modify database -d CLONE01 -spfile /acfs_snap/.ACFS/snaps/CLONE01/CLONE01/spfileCLONE01.ora'
2015-06-26 13:14:48: D Exit code: 0
2015-06-26 13:14:48: D Output of last command execution:
2015-06-26 13:14:48: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/srvctl start database -o nomount -d CLONE02'
2015-06-26 13:14:56: D Exit code: 0
2015-06-26 13:14:56: D Output of last command execution:
2015-06-26 13:14:56: D Executing: su oracle -c 'export ORACLE_SID=CLONE02; echo exit | /u01/app/oracle/product/12.1.0/dbhome_1/bin/sqlplus sys/welcome1 as sysdba @/var/log/gDBClone/ctrl.sql'

SQL*Plus: Release 12.1.0.2.0 Production on Fri Jun 26 13:14:56 2015

Copyright (c) 1982, 2014, Oracle.  All rights reserved.

Connected to:
Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production
With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options

SQL> SET FEEDBACK 1
SQL> SET NUMWIDTH 10
SQL> SET LINESIZE 80
SQL> SET TRIMSPOOL ON
SQL> SET TAB OFF
SQL> SET PAGESIZE 100
SQL>
SQL> CREATE CONTROLFILE REUSE SET DATABASE CLONE02 RESETLOGS
  2      MAXLOGFILES 16
  3      MAXLOGMEMBERS 3
  4      MAXINSTANCES 2
  5      MAXLOGHISTORY 292
  6  LOGFILE
  7    GROUP 1 '/acfs_snap/.ACFS/snaps/CLONE02/CLONE01/onlinelog/CLONE01_log1.log' SIZE 512M BLOCKSIZE 512,
  8    GROUP 2 '/acfs_snap/.ACFS/snaps/CLONE02/CLONE01/onlinelog/CLONE01_log2.log' SIZE 512M BLOCKSIZE 512,
  9    GROUP 3 '/acfs_snap/.ACFS/snaps/CLONE02/CLONE01/onlinelog/CLONE01_log3.log' SIZE 512M BLOCKSIZE 512
 10  DATAFILE
 11  '/acfs_snap/.ACFS/snaps/CLONE02/CLONE01/datafile/o1_mf_sysaux_brt9z50o_.dbf',
 12  '/acfs_snap/.ACFS/snaps/CLONE02/CLONE01/datafile/o1_mf_system_brt9z4rw_.dbf',
 13  '/acfs_snap/.ACFS/snaps/CLONE02/CLONE01/datafile/o1_mf_undotbs1_brt9z9kf_.dbf',
 14  '/acfs_snap/.ACFS/snaps/CLONE02/CLONE01/datafile/o1_mf_users_brtb0lg1_.dbf'
 15  CHARACTER SET AL32UTF8;

Control file created.

SQL> alter database open resetlogs;
Database altered.

SQL> Disconnected from Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production
With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options
2015-06-26 13:15:36: D Exit code: 0
2015-06-26 13:15:36: D Executing: export ORACLE_SID=CLONE02; echo exit | /u01/app/oracle/product/12.1.0/dbhome_1/bin/sqlplus sys/welcome1 as sysdba @/var/log/gDBClone/tempTBS.sql

SQL*Plus: Release 12.1.0.2.0 Production on Fri Jun 26 13:15:36 2015

Copyright (c) 1982, 2014, Oracle.  All rights reserved.

Connected to:
Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production
With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options

Tablespace created.
Database altered.
Tablespace dropped.
Tablespace altered.

SQL> Disconnected from Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production
With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options
2015-06-26 13:15:37: D Exit code: 0
2015-06-26 13:15:37: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/srvctl modify database -d CLONE02 -z'
2015-06-26 13:15:38: D Exit code: 0

2015-06-26 13:15:39: I Successfully created clone "CLONE02" database
2015-06-26 13:15:39: D Executing: su oracle -c '/u01/app/oracle/product/12.1.0/dbhome_1/bin/lsnrctl stop listener_clone >/dev/null'
2015-06-26 13:15:39: D Exit code: 0

Validation of the SNAP

ps -ef|grep smon
oracle    2379     1  0 10:33 ?        00:00:01 asm_smon_+ASM
oracle    2604     1  0 10:33 ?        00:00:00 ora_smon_db01
oracle   19318     1  0 13:14 ?        00:00:00 ora_smon_CLONE01
oracle   19879     1  0 13:14 ?        00:00:00 ora_smon_CLONE02
root     20393  2635  0 13:16 pts/0    00:00:00 grep smon
/u03/app/grid/product/12.1.0/grid/bin/crsctl status resource -w "TYPE = ora.database.type" -t
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.clone01.db
      1        ONLINE  ONLINE       em12c                    Open,STABLE
ora.clone02.db
      1        ONLINE  ONLINE       em12c                    Open,STABLE
ora.db01.db
      1        ONLINE  ONLINE       em12c                    Open,STABLE
--------------------------------------------------------------------------------

Query the ACFS CLONE/SNAP with gDBClone

gDBClone listdb -verbose
Database Name    Database Type   Database HomeLocation                     Database Version   Database Role      Location/Parent
-------------    -------------   ---------------------------------------   ----------------   ----------------   ----------------
CLONE02          SINGLE          /u01/app/oracle/product/12.1.0/dbhome_1                      Snapshot           CLONE01
CLONE01          SINGLE          /u01/app/oracle/product/12.1.0/dbhome_1                      Master             /acfs_snap/.ACFS/snaps/
gDBClone listdb -tree
Parent Child
------ -----
CLONE01
 CLONE02

Delete a database with gDBClone

gDBClone deldb -tdbname clone02 -debug
You are going to drop the database CLONE02, are you sure (Y/N)? y
Connecting to database
4% complete
9% complete
14% complete
19% complete
23% complete
28% complete
47% complete
Updating network configuration files
48% complete
52% complete
Deleting instance and datafiles
76% complete
100% complete
Look at the log file "/u01/app/oracle/cfgtoollogs/dbca/CLONE02.log" for further details.
acfsutil snap delete: Snapshot operation is complete.
ACFS snapshot CLONE02 on /acfs_snap ACFS file system has been deleted.
u03/app/grid/product/12.1.0/grid/bin/crsctl status resource -w "TYPE = ora.database.type" -t
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.clone01.db
      1        ONLINE  ONLINE       em12c                    Open,STABLE
ora.db01.db
      1        ONLINE  ONLINE       em12c                    Open,STABLE
--------------------------------------------------------------------------------
